Sangofix® Air

Blood Administration Set, vented

Blood administration set, non-vented for flexible blood bags

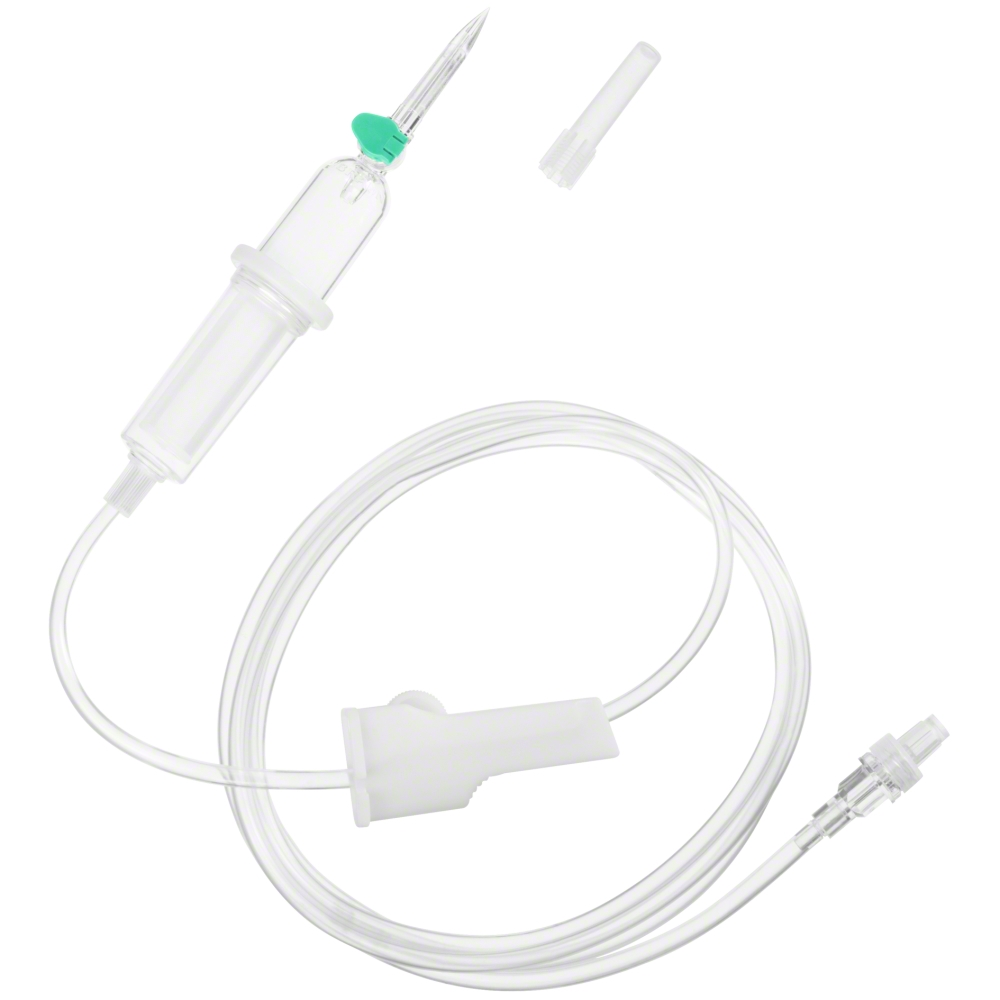

Sangofix®

Vented blood administration set for the administration of blood and blood components stored in glass bottles for gravity administration.

The device can be used for all patients for which infusion therapy is prescribed. No gender or age related limitations. Sangofix® can be used for adults, pediatric and neonates.

Advantages

Blood Filter 200µm / 11cm2

  • Blood filter with 11 cm2 surface area helps to prevent particulate contamination by retaining particles >200 μm and consequently helps to avoid transfusion of blood clots and cellular debris resulting from storage. During a laboratory test, Sangofix® with a filter surface of 11 cm2 was used to successively administer 10 erythrocyte concentrates while providing a higher flow rate than required by ISO 1135-4
  • Hanging filter basket arrangement for soft impingement of blood drops

Drip Chamber

  • Clear, vented piercing spike with sharp tip for use with glass bottles
  • Bacteria-tight air vent, closable with handy snap cap
  • Fully transparent dome offers visibility for a constant visual monitoring of flow rate
  • Elastic pump chamber allows easy and quick set-up of fluid level

Roller Clamp

  • Integrated spike protection at roller clamp for disposal
  • Parking position to attach the patient connector to roller clamp.

Luer Lock Connector

  • Screw tight Luer Lock patient connector which helps to avoid accidental disconnection which could lead to microbiological contamination
  • Pressure resistant up to 400 mm Hg. (approx. 0.5 bar).
  • DEHP-free
  • Latex-free

Paediatric Use

  • PVC / DEHP free tubing: All lines of the article code 4062866 are PVC-free, there is no risk of DEHP exposure
